Micro­power

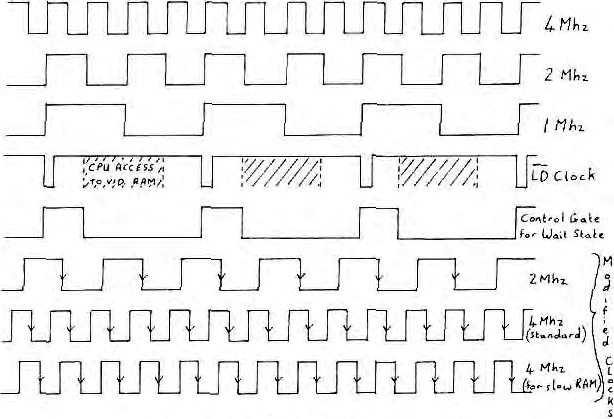

Figure 2

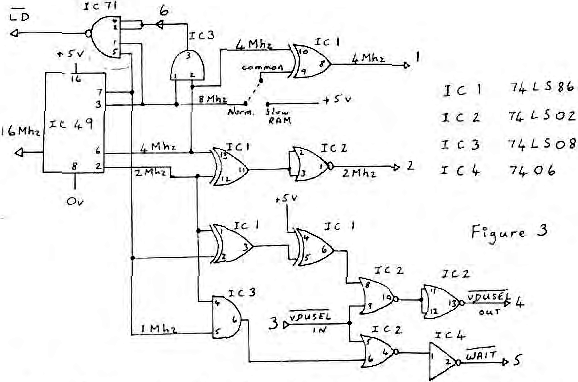

IC 49 is on the Snowdinger 2 board in a wire-wrap socket. Pins 2 and 6 of this socket are cut short so that, when the board is plugged into the Nascoms socket fir IC 49, they do not make any connections. Instead wires and 2 are placed in these pins on the main board.
