It is connected to the header plug LKS by means of 9 veropins attached to the copper side of the board at the marked locations. Note that the breaks in the copper tracks are not shown in the layout.

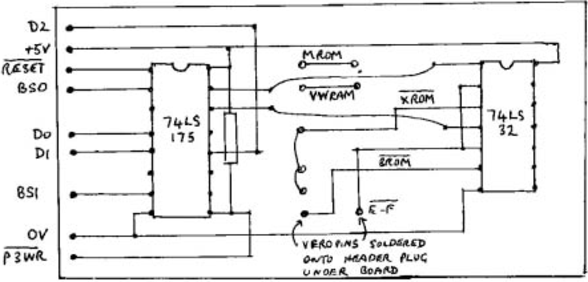

Fig. 3 VERO Layout Of Bank Selection Unit
