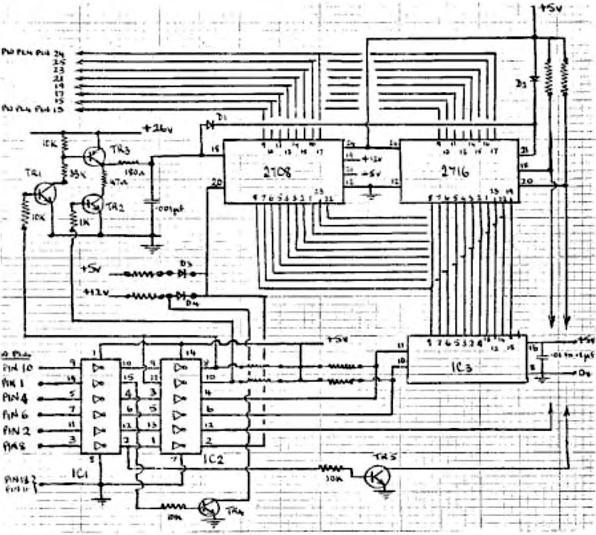

Fig. 1     2708 Programmer Circuit


Notes: 1) Port A Of Pio Used For Data, Port B For Control
2) Decoupling Capacitors 0.01 – 0.1 Uf Should Be Used On Each Ic (As On IC 3)
3) The Pin Numbers Shown Refer To The Nas­Com 2 26-Way Pio Connector
4) Observe Cmos Handling Precautions With Ics 1 And 3, And The Eproms
5) If Possible Use Zero Insertion Force Sockets For The Eproms
6) Unmarked Pull Up Resistors Can Be In The Range 4.7k To 10k
