EPROM Programmer/Checker/Reader
Part 2
By C. Bowden
The
previous article
described an EPROM programmer that I recently designed
and built. The present article gives the circuit diagrams of the programmer and a
suitable power supply, together with a Veroboard layout for the programmer and the
source code of the software necessary for its operation.

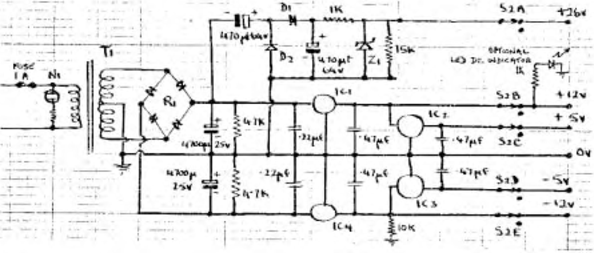

Fig. 0 Programmer Power Supply
| 1: | ;* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| 2: | ;* * |
| 3: | ;* EPROM PROGRAMMER FOR 2708/2716 * |
| 4: | ;* * |
| 5: | ;* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| 6: | ; |
| 7: | ; FOR Nascom 2 WITH 4 MHZ CLOCK. |
| 8: | ; |
| 9: | ; (NO WAIT STATES) |
| 10: | ; |
| 11: | ; |
| 12: | ; WRITTEN FOR MACRO 80 ASSEMBLER. |
| 13: | ; |
| 14: | ; WILL NEED TO BE MODIFIED FOR ZEAP ASSEMBLER. |
| 15: | ; |
| 16: | ; C.BOWDEN NOV. 1981 |
| 17: | ; |
| 18: | ;* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| 19: | ; |
| 20: | ; EQUATES: |
