This comes about because the Manchester II system is edge sensitive and it depends upon whether the cassette recorder inverts the data out relative to the data in (some do). If tapes recorded on different recorders are to be replayed, it might be advisable to fit a switch to select the appropriate Q output.


Adjustment

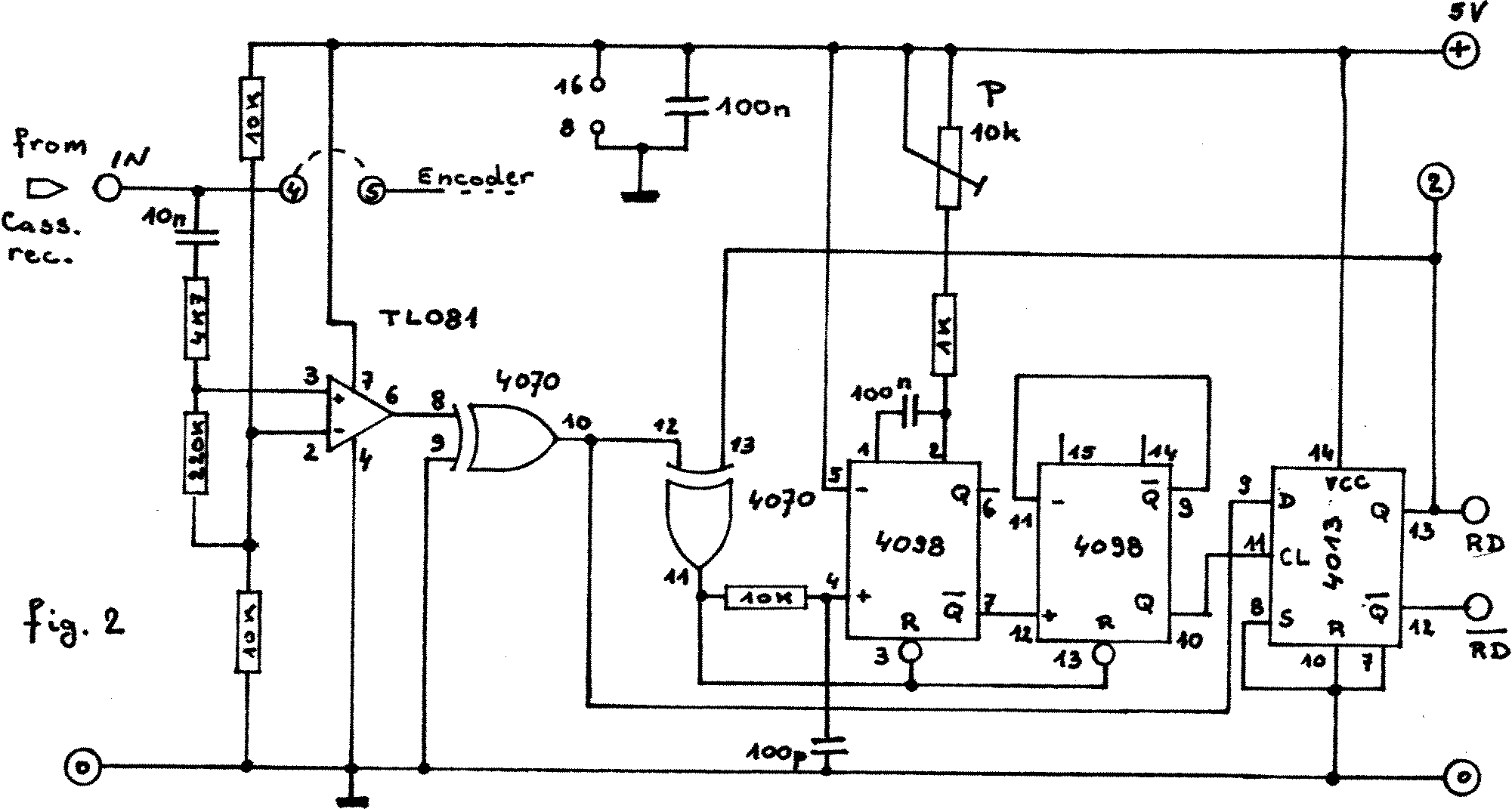

The encoder does not require any adjustment, and correct operation can be checked either with a ’scope or by recording a block of memory filled with code 03H, in which case the recorded data will have an even tone when listened to. The only decoder adjustment is the preset pot P, which may be achieved either with a ’scope by connecting the output of the encoder to the decoder input and then adjusting for correct decoding by displaying both the input and the output; or without a ’scope by first recording several K’s worth of 03H and coarse adjusting for correct reloading on replay. Fine adjustment is then made by recording the system monitor several times over, and adjusting for correct reloading.

Figure 3 shows a small modification which may be added to reduce the tendency to pick up spurious noise. Pin 2 of the 74LS00 is connected to pin 3 of G1 of the tape control circuit published in ‘Computing Today”, February 1980, or to pin 12 of IC41 if the former is not installed.


The whole circuit may be connected to the Nascom 1 using the switching system illustrated in fig. 4. The four pole four way switch gives the following functions:

1– 3900 baud normal polarity
2– 3900 baud inverse polarity
3– 488 baud (twice Nascom 1 normal)
4– 244 baud (Nascom 1 normal)
